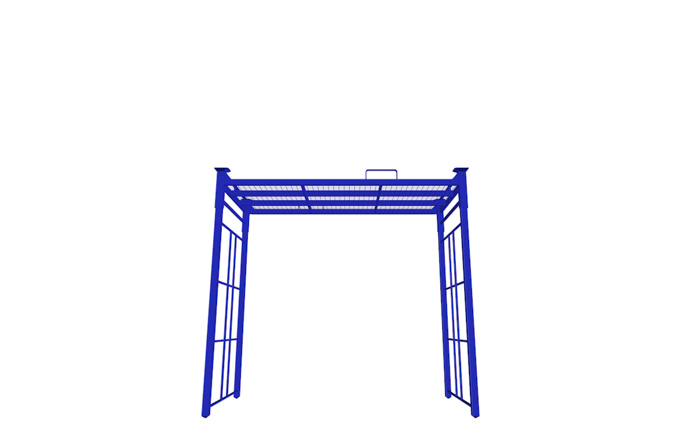

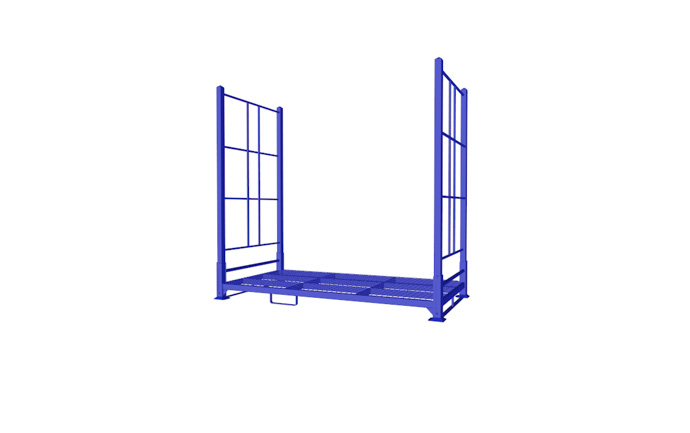

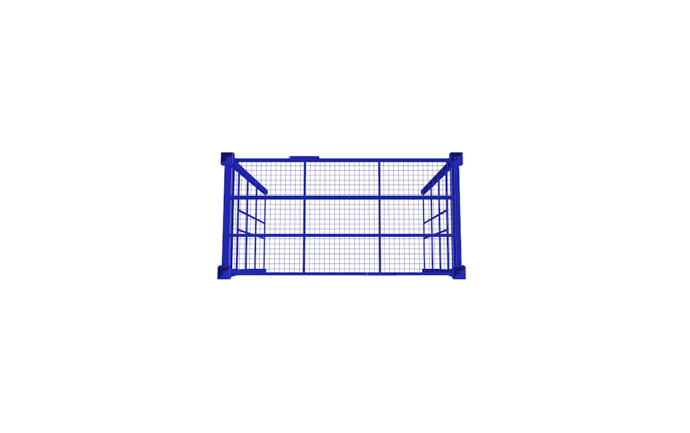

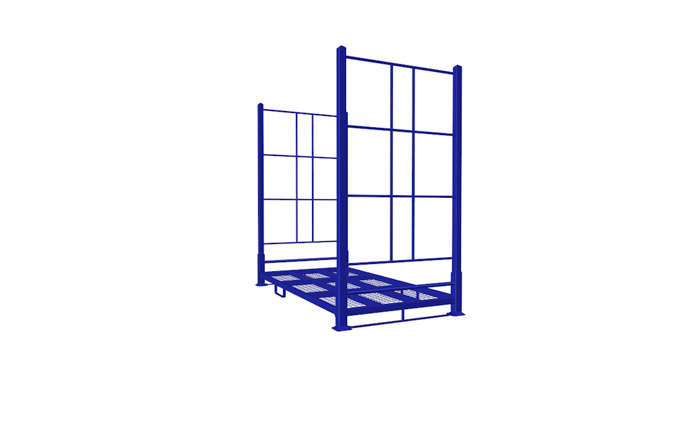

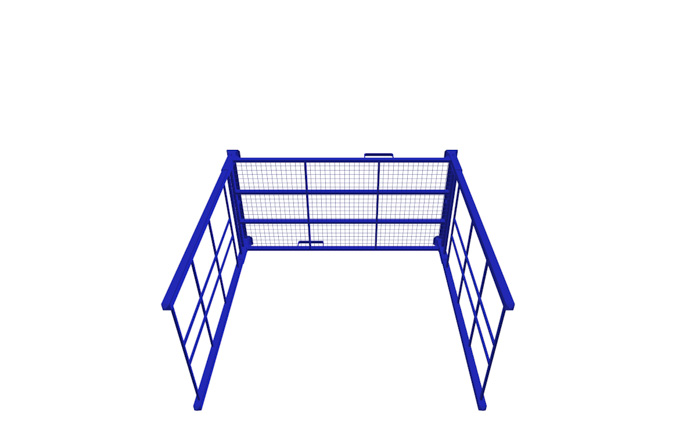

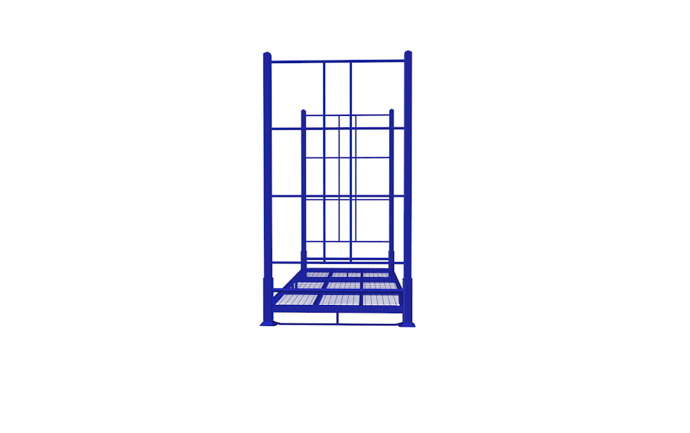

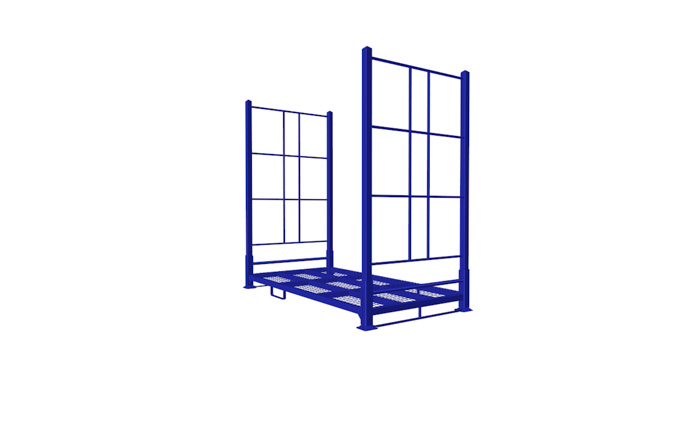

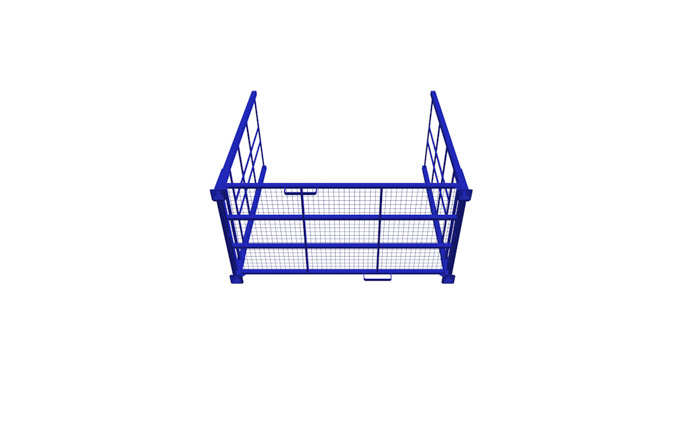

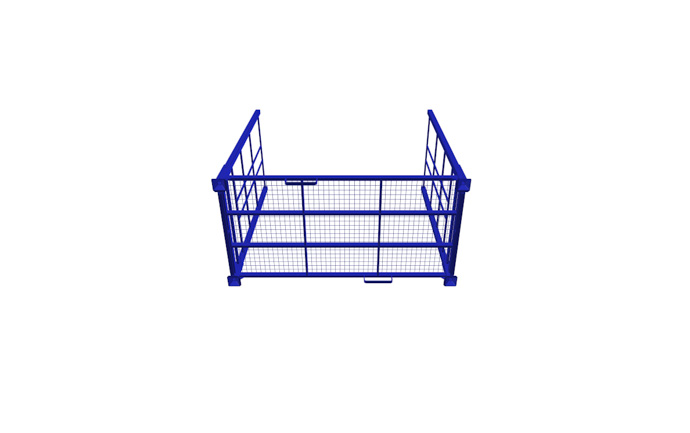

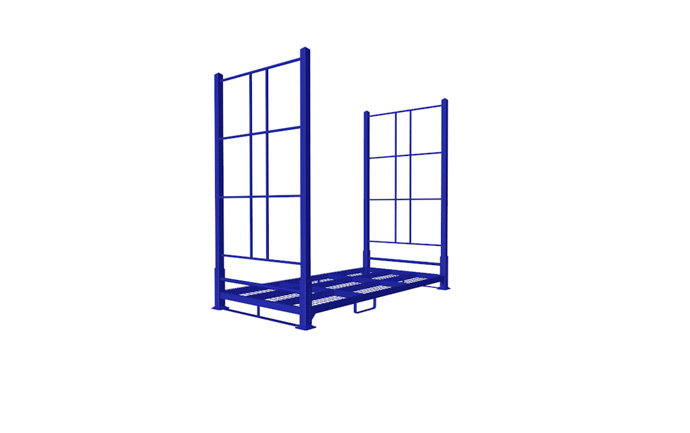

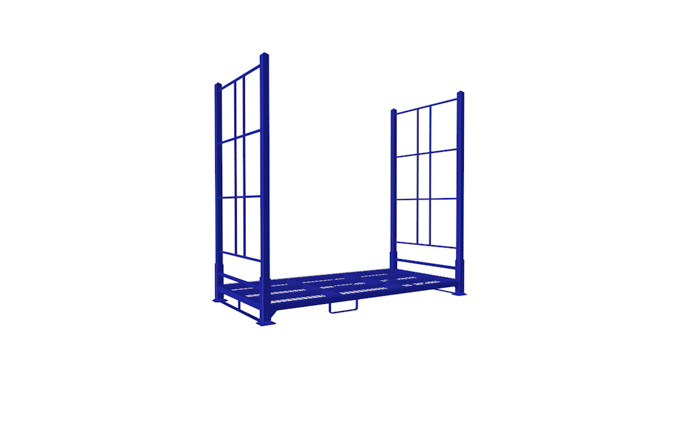

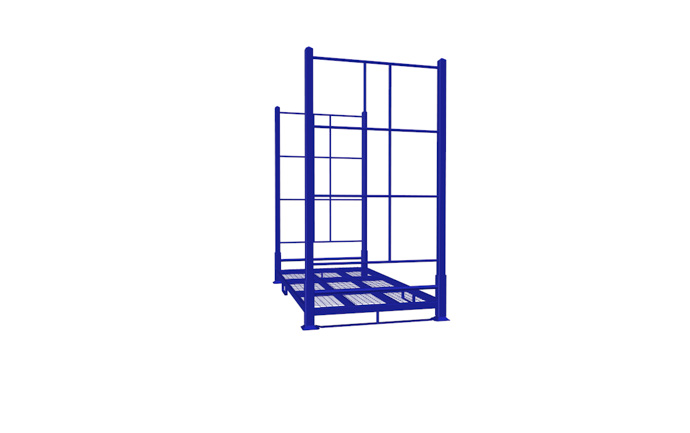

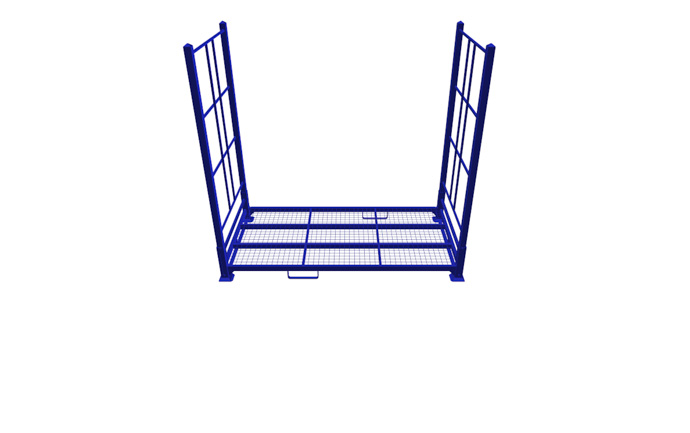

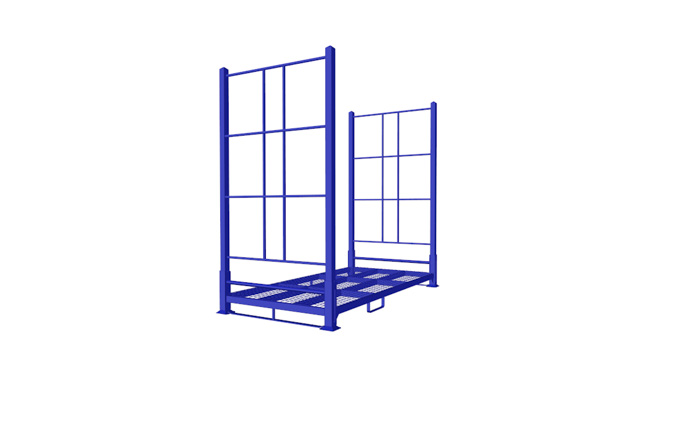

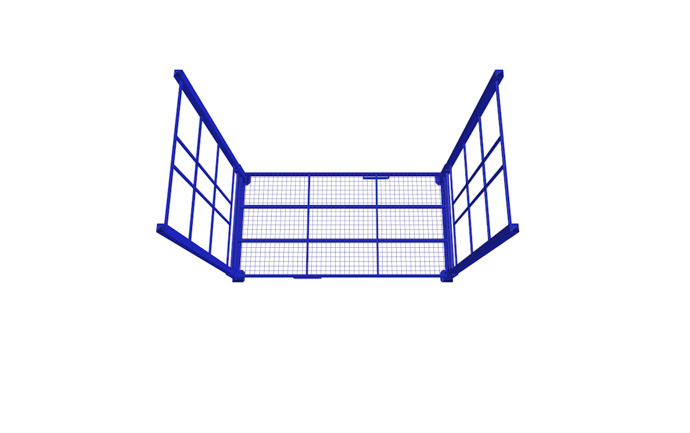

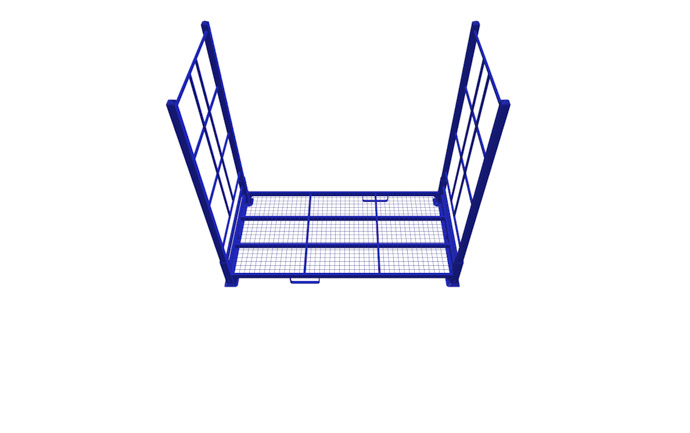

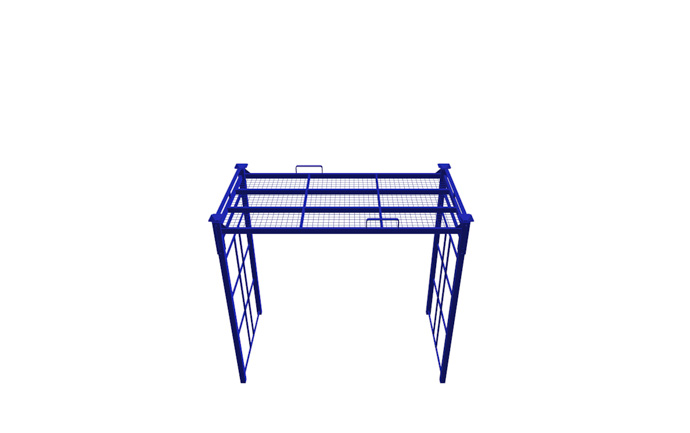

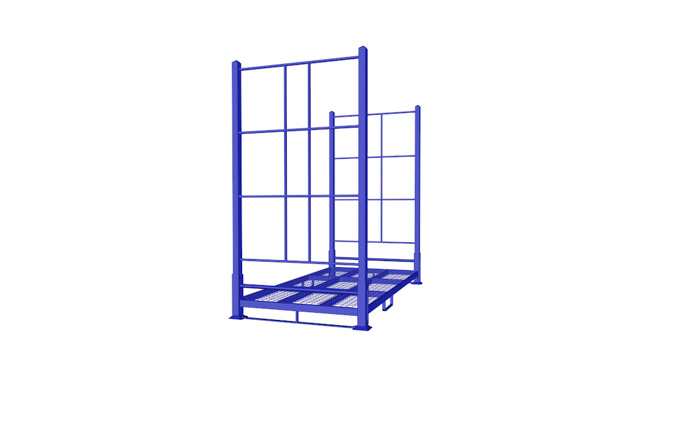

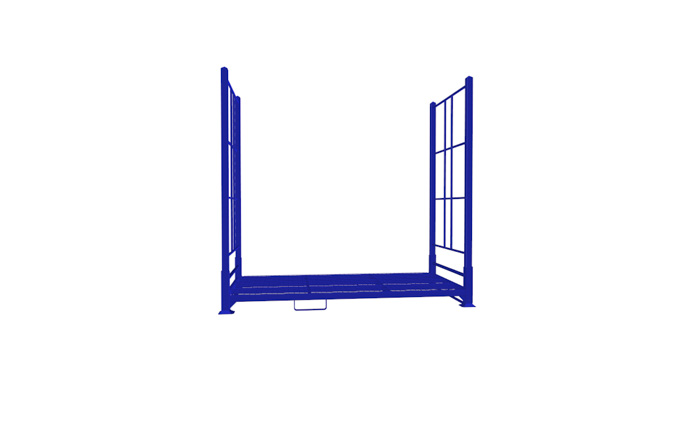

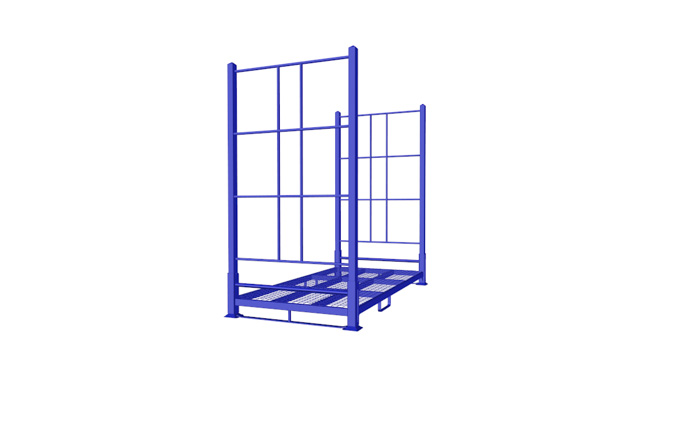

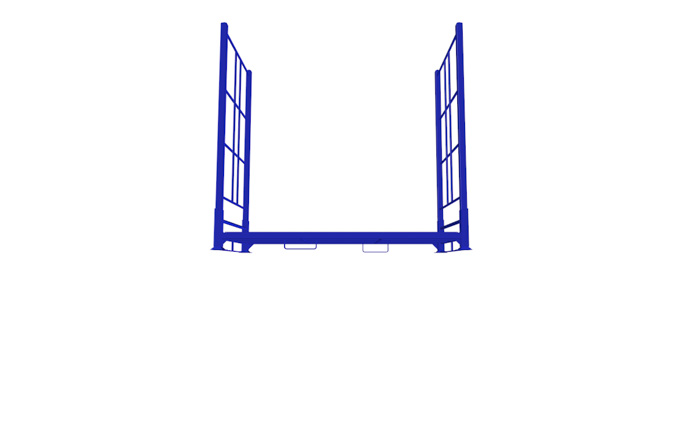

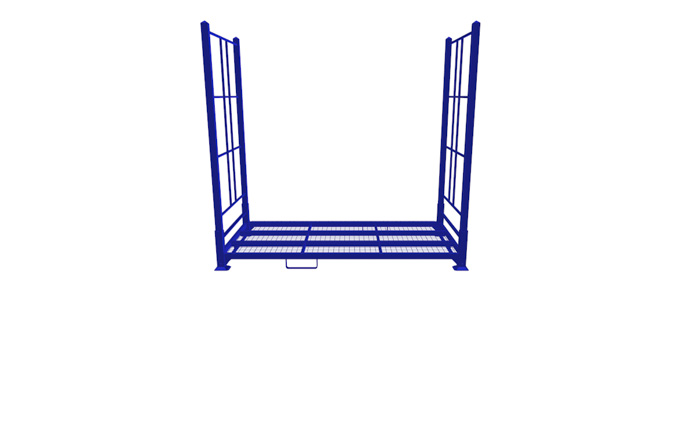

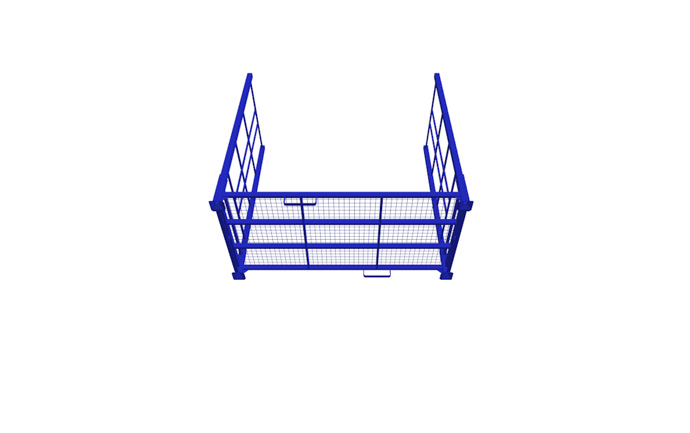

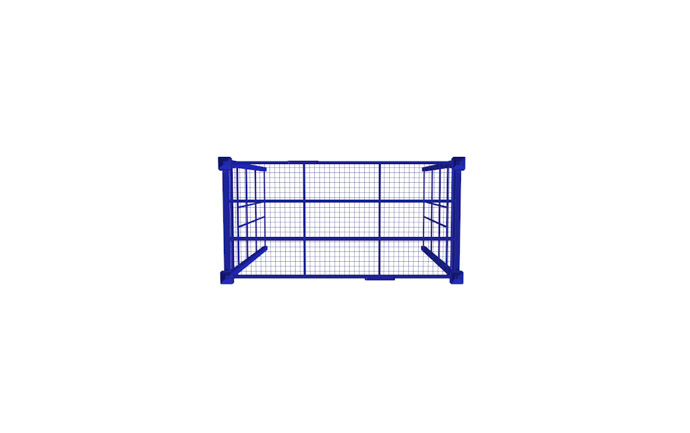

Pallet NEO 22 LW for passenger tyres
Additional information

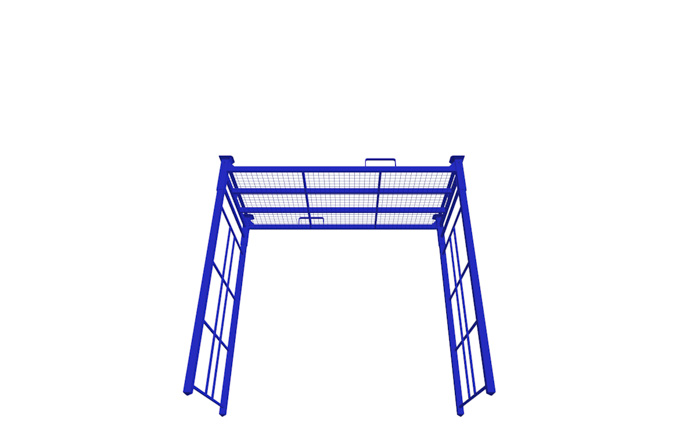

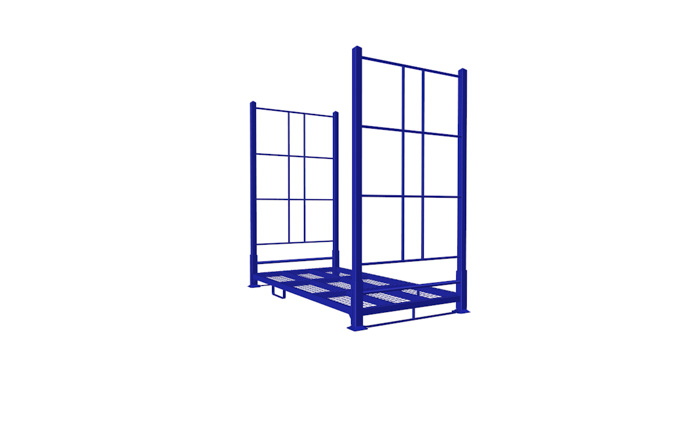

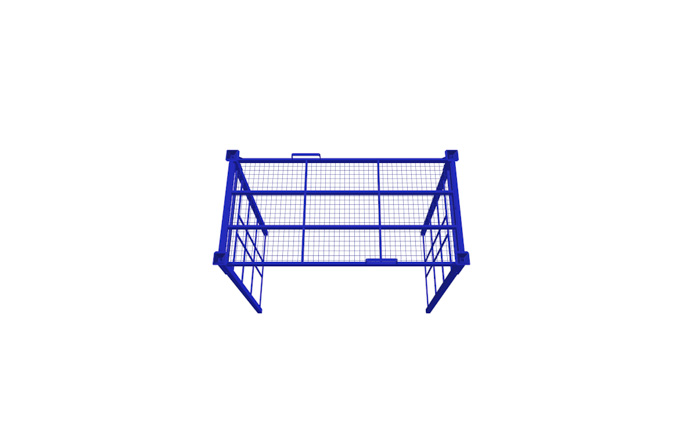

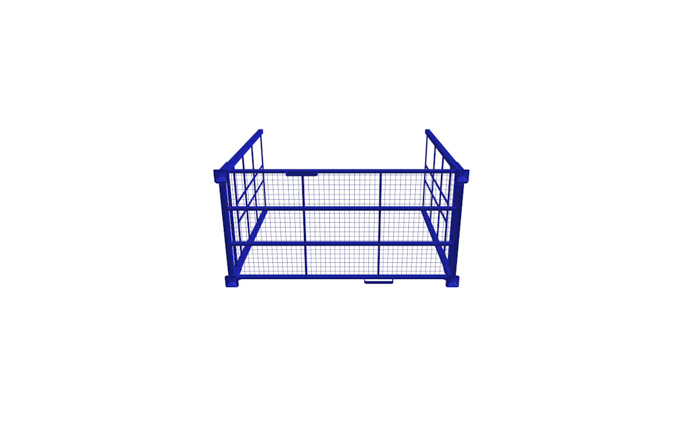

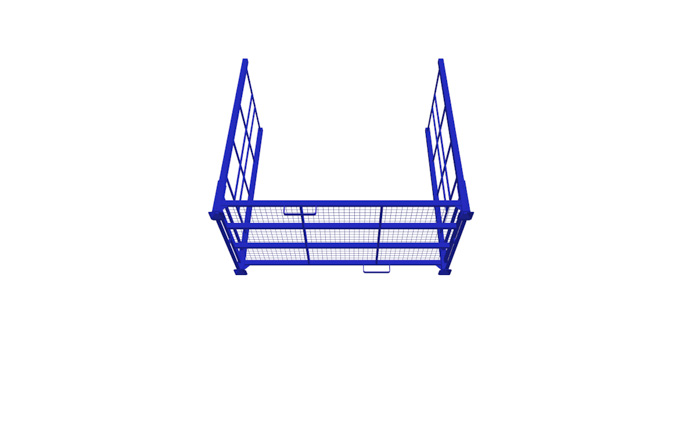

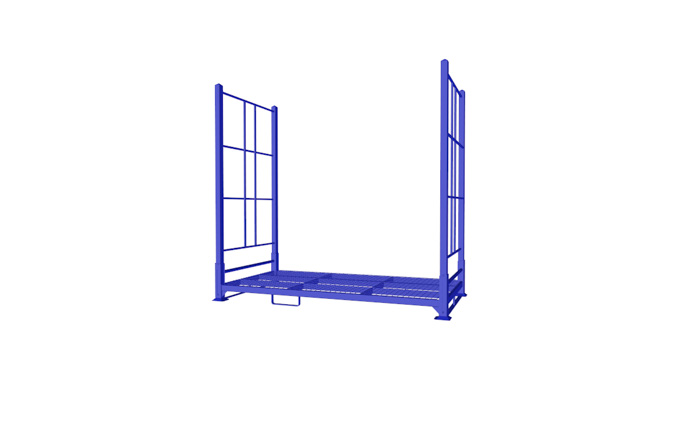

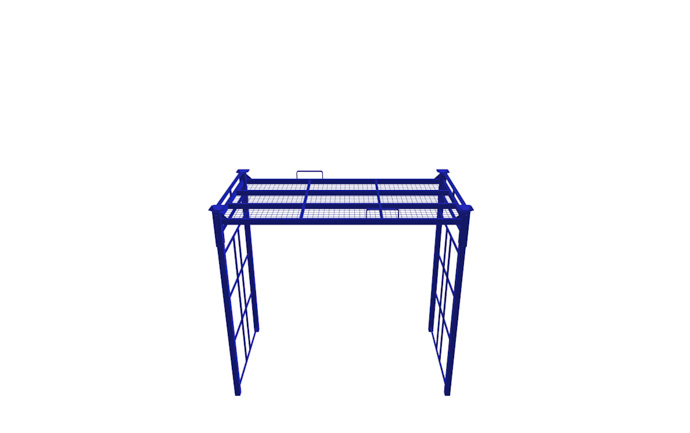

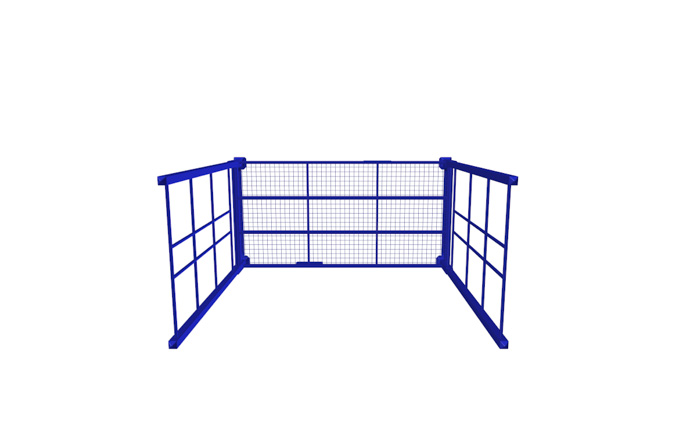

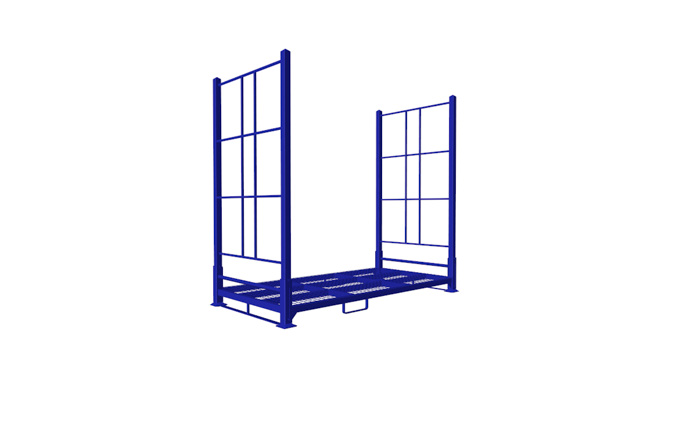

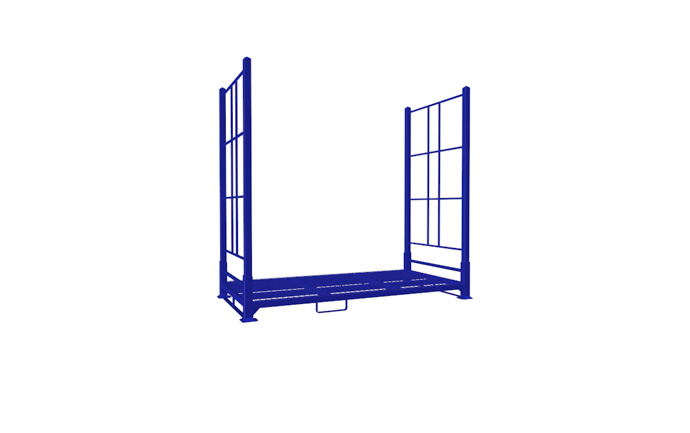

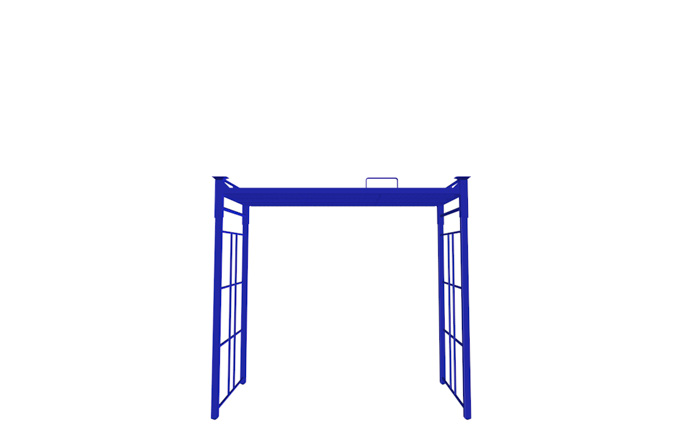

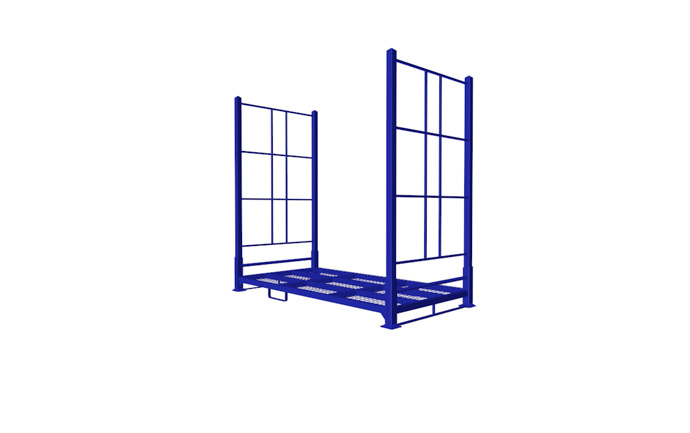

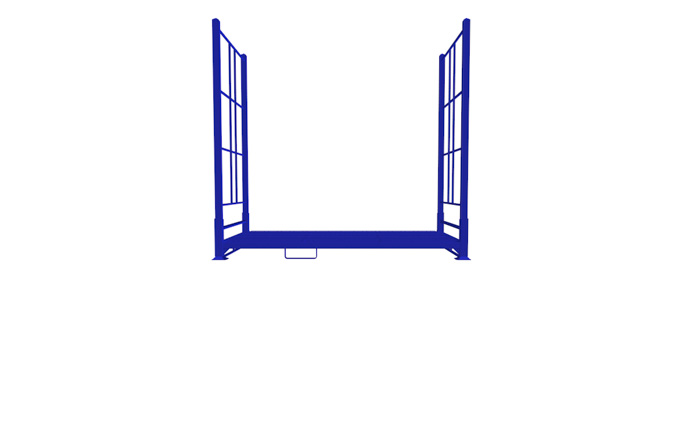

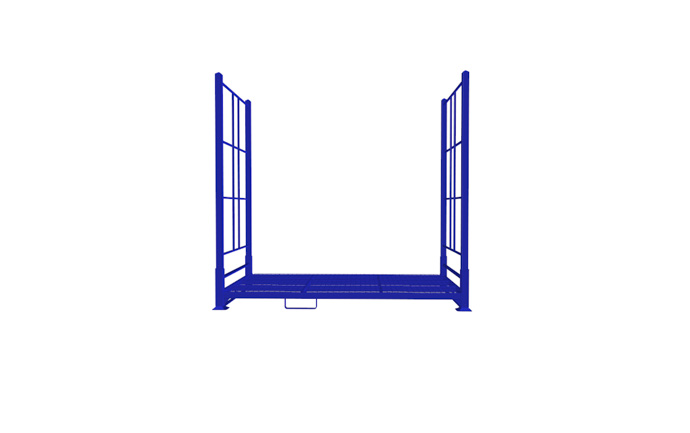

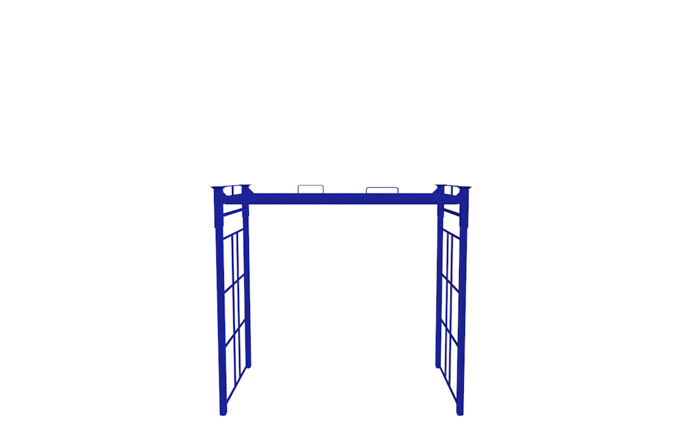

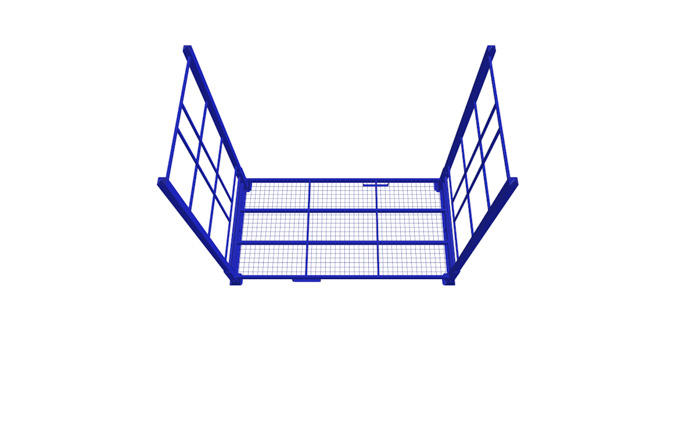

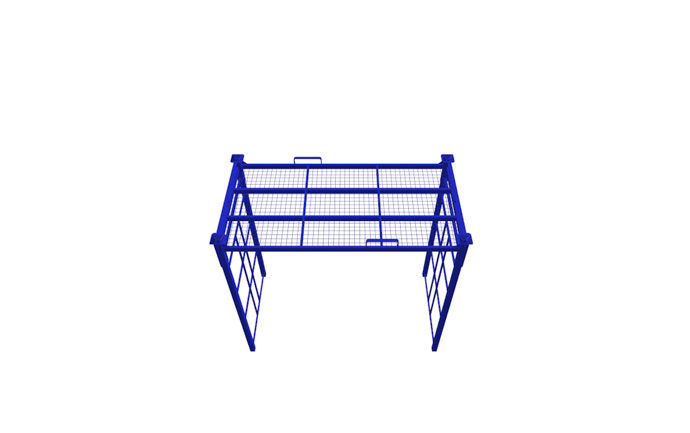

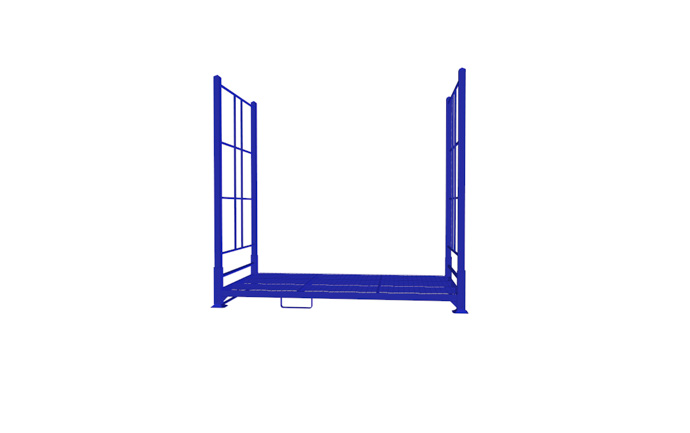

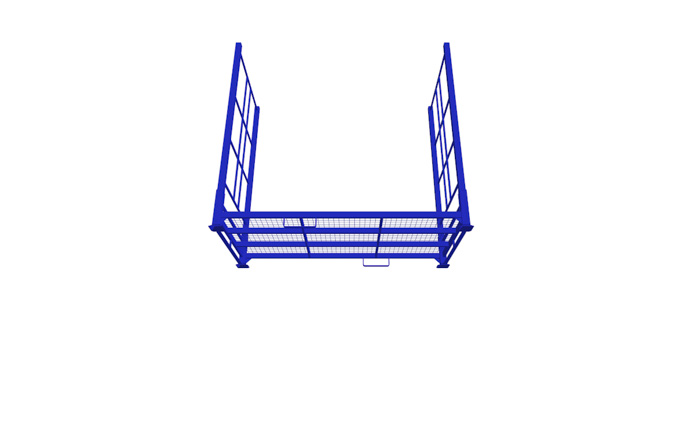

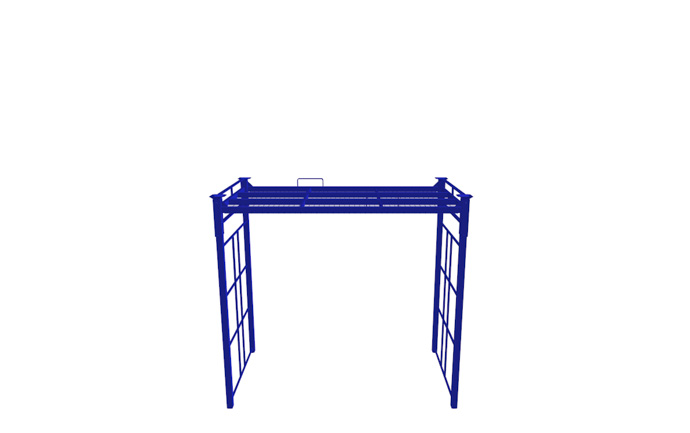

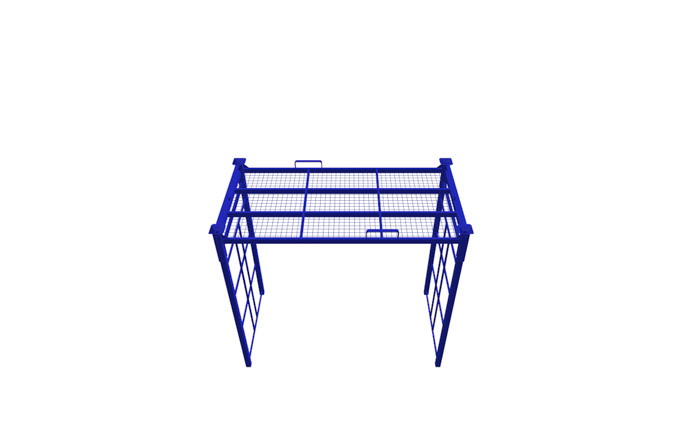

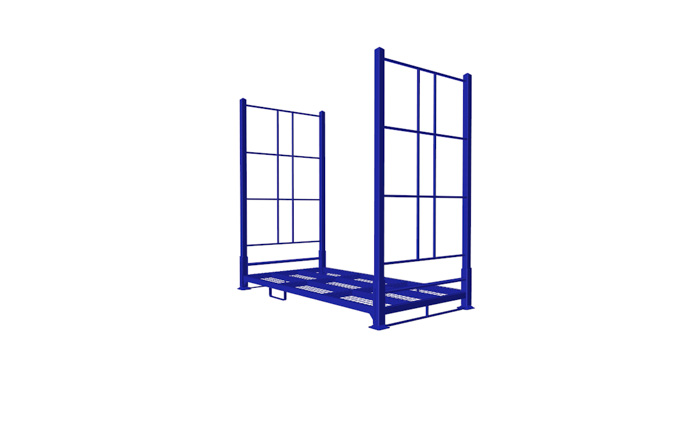

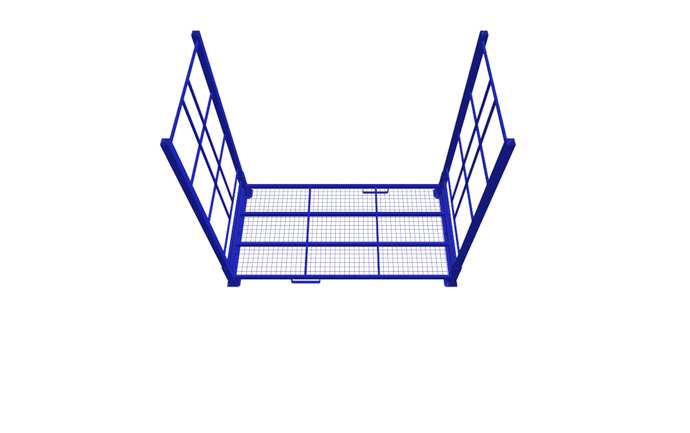

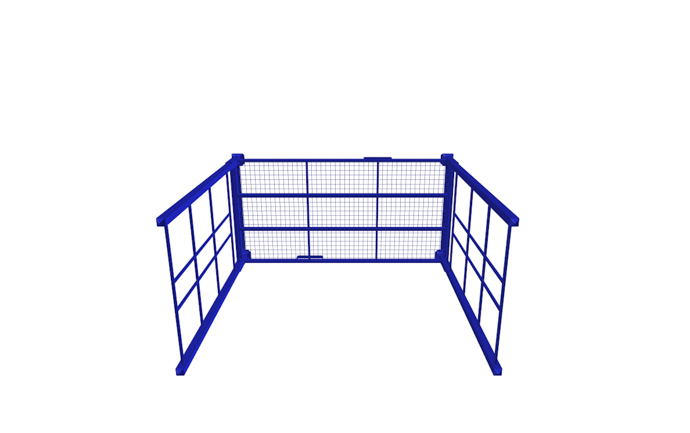

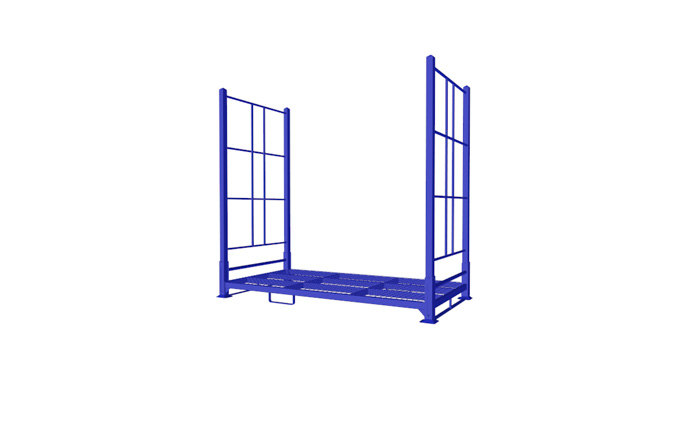

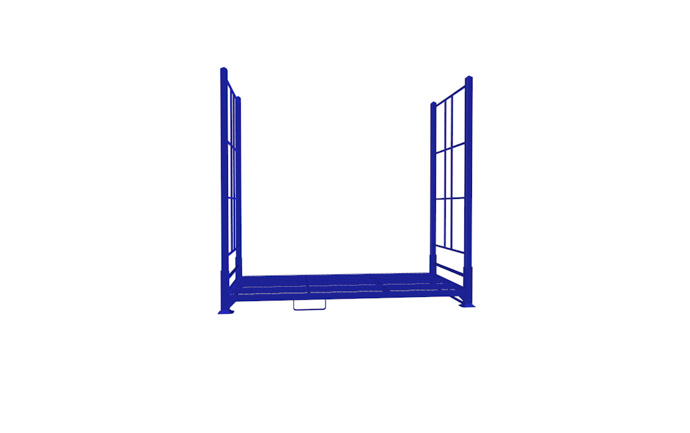

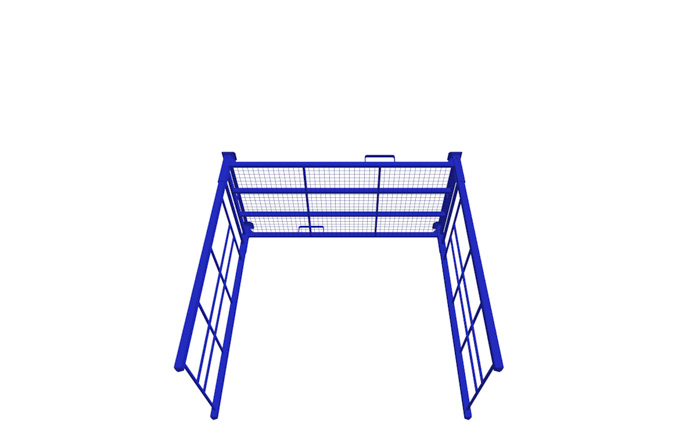

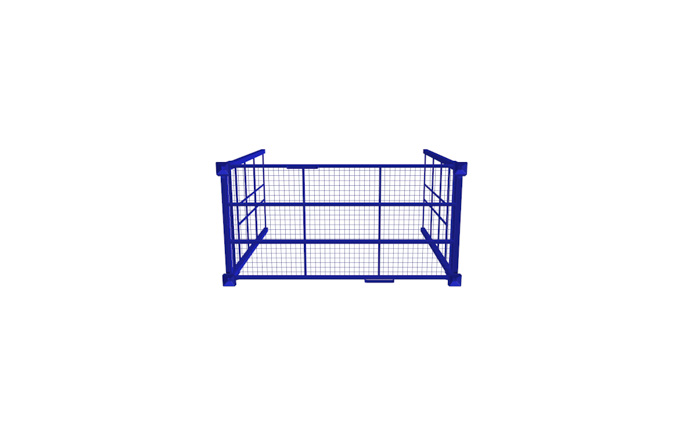

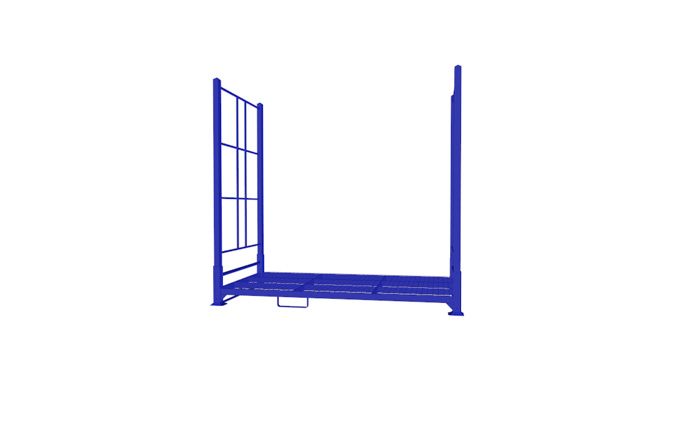

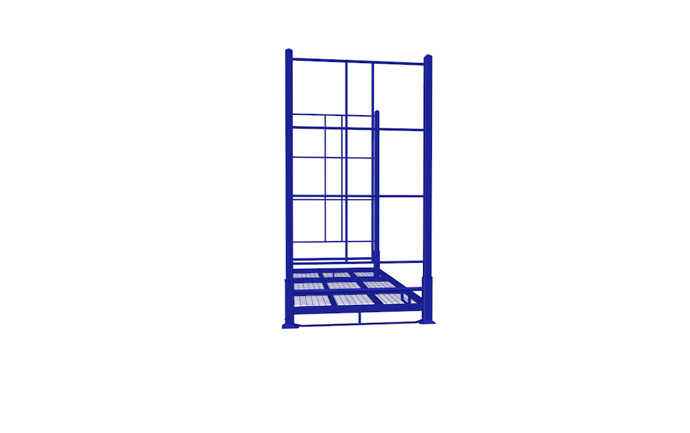

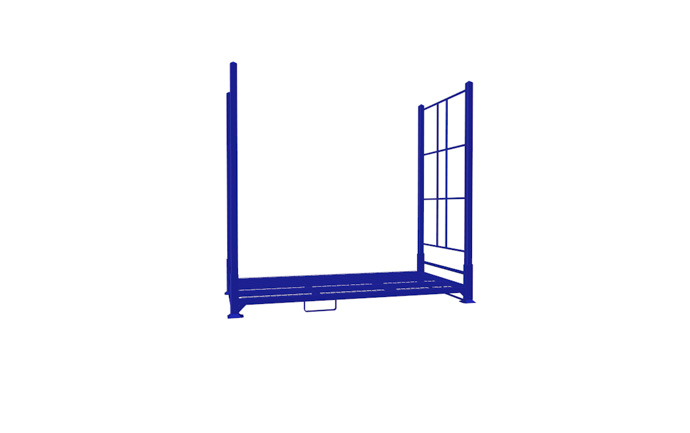

Pallet NEO 22 LW – Optimal storage solution for passenger tires
Our innovative pallet NEO 22 LW has been specially developed for efficient passenger tire storage in a fishbone arrangement. If you store a large number of tires with identical diameters, this tire rack is the optimal solution to maximize your storage capacity and efficiency.
The nested (fishbone) storage arrangement ensures significantly better use of storage space compared to conventional flat stacking. Each pallet also features a special safety mechanism that prevents accidental folding of the sidewalls, ensuring safe and reliable use over many years.
Key benefits of NEO 22 LW steel pallet:
- Optimized space utilization: Nested storage significantly reduces storage and transport space.
- High load capacity and stability: Safe storage with a payload of up to 1000 kg; stackable up to 4 fully loaded pallets.
- Space-saving solution: When not in use, up to 20 pallets can be stacked together empty, saving warehouse space.
- Easy handling: Pallets are designed for convenient front forklift handling, and side handling is also possible using suitable forklift forks.
- Optimized for transportation: Dimensions are designed specifically to fit TIR trailer widths, facilitating efficient transport logistics.
- Durable construction: Robust steel structure and high-quality RAL powder coating ensure long-term industrial usage.

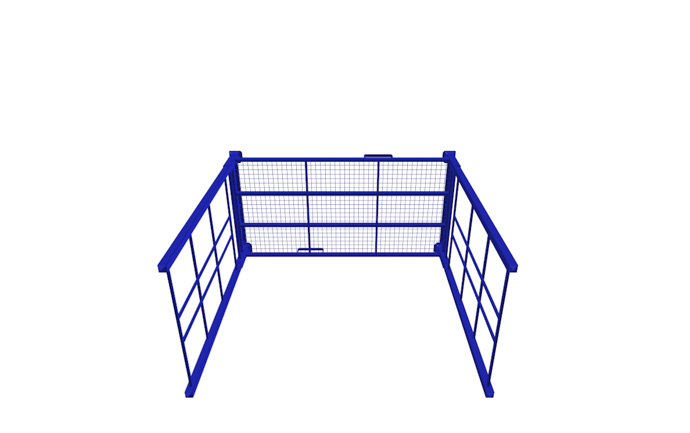

- Flexible and adaptable: Available in various pallet heights (2.20 m, 2.00 m, 1.80 m) and different floor types (e.g., mesh flooring).
- Environmentally friendly: Fully recyclable, providing a sustainable storage solution.
Frequently Asked Questions (FAQ)
Is side handling possible?
Yes, pallets allow safe side handling when suitable forklift forks are used.
What alternative pallet heights are available from AVEX?
Besides the standard height of 2.20 m, we also offer pallets in heights of 2.00 m and 1.80 m (technical sheets available in PDF below).
How stable is the system under full load?
NEO 22 LW pallets can be safely stacked up to 4 fully loaded units. When empty, up to 20 pallets can be stacked to save warehouse space.
Are the pallets optimized for transport?
Yes, the pallet dimensions are specifically designed to match the widths of TIR trailers, facilitating efficient transportation and logistics.
What materials are the pallets made from?
Our pallets are made from certified steel and finished with a high-quality powder coating, available in any RAL color of your choice.
Optimize your warehouse storage! Contact us now to get your personalized offer.
Specifications
- Kód:187T20-000-00 RAL 5010
- Load capacity:1 000 kg
- Surface finish:Powder coating
- Ground plan:2 395 x 1 250 mm
- Stackability:4/20
- Height:2 205 mm
- Pallets / truck 120 cbm:96
- Storing:Laced
